Wireless Configuration for NetComm NP803n Routers
This guide is suitable for NetComm NP803n routers. You will also need an Ethernet cable to complete this guide.
What we'll cover:
- Logging into your router
- Turning your router's wireless settings on (or off)
- Securing your wireless network so only people you allow may connect
Not what you're looking for? Try the NetComm NP803n Fibre to the Premises/NBN guide.
NOTE: The NP803n router may have wireless turned on by default.
If you will not be using the wireless network, we recommend you turn the wireless off for security reasons.
Configuring your Wireless network
Step 1
- Make sure that your computer is connected to your router with an Ethernet cable.
- Open your preferred web browser, for example: Internet Explorer, Google Chrome, or Mozilla Firefox.
- Enter the following number into the address bar and then hit Enter on your keyboard:
- 192.168.20.1 (this number is called an IP Address).
Figure 1: Entering the IP address to access the router |
Step 2
- The modem Log In page will open. You will be prompted for a username and password.
- The default username and password for the NP803n is as follows:
Username: | admin |
---|---|
Password: | admin |
This is the router's default username and password. We recommend that you change the password for security reasons. |
- Click OK to log in to the router.
Step 3

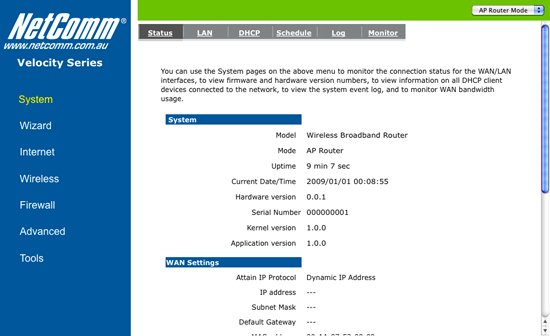

- The NetComm status page will be displayed. This will show details including the model of your router, and the current firmware version (the software that runs the router).
- Click the Wireless link in the menu to the left of the screen.
Figure 3: The NetComm NP803n Status (System) screen |
Step 4

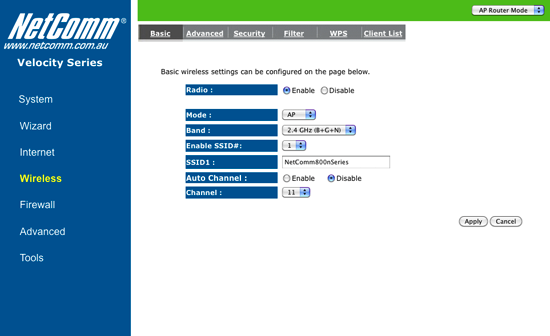

- The Basic Wireless settings page will be displayed.
- NOTE: The NP803n has wireless turned on by default. If you will not be using the wireless network, set Radio to Disable. This will prevent unauthorised access to your wireless network.
- Create a name for your wireless network and enter this into the field labelled SSID. Do not leave "NetComm800nSeries" as the SSID.
Creating a network name (SSID)
Your network name is used to identify your wireless network. This is particularly useful if there are other wireless networks nearby.
Because your network name will be visible outside of your home or office, the name should be recognisable but should not use any personal or service details.
- Bad Network Names:
BloggsFamily, JoeBloggs, 123JamesStreet, Internode, default, your Internode username, your router's name/brand. - Good Network Names:
MyNetwork, HomeWireless, Homestead, Cookie Monster (be creative!)
- Once you have chosen a network name, click Apply to save the settings.
Figure 4: Basic Wireless settings |
Step 5
- The router will take a few seconds to save your settings, and will return you to the Basic wireless settings page.
- Click Security at the top of the screen to secure your network.
- Enter the following information into their corresponding fields:
Encryption: | WPA pre-shared key |
---|---|
WPA type: | WPA2(AES) |
Pre-shared Key type: | Passphrase |
Step 6
- Create a password that will be used to access your wireless network. This needs to be entered into the field marked Pre-shared Key.
Creating a Pre-shared Key (Wireless Password)
A Pre-shared key prevents people you don't know from accessing your wireless network. When you connect your computers to your wireless network, you will be asked for the pre-shared key. If someone tries to connect without the pre-shared key, they will be unable to connect.
Your pre-shared key:
- must have a minimum of 8 alphanumeric characters (the longer the better)
- is case sensitive
- should never be the same as your Internode password - or any password you currently use!
We recommend you create a complex password for your pre-shared key.
- Once you have entered a password (pre-shared key), click Apply to save the settings.
Figure 5: Wireless Security Settings |
Congratulations! You have successfully configured the wireless settings on your NetComm NP803n router.
To connect your computer to the network, please refer to the following guides:
- Connecting a Windows computer to a wireless network
- Connecting a Macintosh computer to a wireless network
Further Assistance
If you are looking to set up your Internet service, please refer to our Internet setup guide:
If you are having trouble setting up your router, or would like to clarify some of the steps, please contact our Support Team.
